Protect What Matters
Designed for use in the most challenging physical environments, the CN7000 Network Encryptor series delivers quantum-resistant crypto-agile encryption at up to 10 Gbps.
The CN7000 safeguards sensitive information and intellectual property from aggressive state and other forms of cyber espionage, ensuring secure, authenticated, and uninterrupted data flows when and where it matters most.
Designed for Last Mile Security
The CN7000 encryptor series brings exceptional durability and security to the edge, preserving control, communications, and intelligence even under the toughest conditions. Wherever the deployment—on land, at sea, or in the air—the CN7000 adapts to the mission with a variety of form factors for military and industrial uses.
Fanless rugged enclosures are designed from the ground up to withstand harsh temperatures, vibration, dust, and water, exceeding mil-spec standards
The 3 Pillars of High-Assurance Encryption
The CN7000 series delivers a comprehensive approach to securing modern networks:
- Crypto Agility
- Quantum-resistant encryption for future threats
- Toolkit for Custom Cipher Development (CSDK): supports sovereign and custom aglorithms
- Support for evolving encryption standards
- Platform Agility
- FIPS-140-3 Level 1 certified
- Enabling flexible deployments across IT and OT environments
- Network Agility
- Protects voice, video, and data across any network
- Low overhead encryption for Layers 2-4
- Supports unicast, multicast and broadcast traffic
- Seamless connectivity for any topology
Get Quantum-Ready
Designed to NIST Post Quantum Cryptography (PQC) standards, the CN7000 series also supports sovereign and custom algorithms to ensure adaptability to future threats and evolving security requirements.
With Senetas Transport Independent Mode (TIM), CN7000 uses NIST-validated key generation ensuring robust, quantum-safe data protection with perfect forward secrecy or external Key Servers (CipherTrust).
Real-Time Responsiveness
The CN7000’s high-performance encryption accelerates data transfers without latency, outperforming legacy software solutions and traditional protocols like IPSec. Easily managed through the Cypher Manager CM7 application, offering users centralized, comprehensive, and intuitive management capabilities with both local and remote access.
Choose the Right Encryptor for Your Mission
While sharing the same core security and speed, each model is engineered for specific deployment environments.
Specifications
| MODEL | CN7105 | CN7107 | CN7108 |
|---|---|---|---|
| Maximum speed | Maximum speed:Up to 1 Gbps encrypted throughput | Maximum speed:Up to 1 Gbps encrypted throughput | Maximum speed:Up to 1 Gbps encrypted throughput |
| Secured Network | Secured Network:M12 X-coded, IEEE 802.3 Gigabit PoE+ (25.5W) | Secured Network:M12 X-coded, IEEE 802.3 Gigabit PoE+ (25.5W) | Secured Network:RJ45, 1 Gbps copper |
| Cryptographic Security | Cryptographic Security:AES-128/256 encryption, GCM/CTR modes X.509 ECC, ML-DSA, ML-KEM certificates Quantum resistant hybrid encryption Custom Ciphers with Cryptographic SDK (CSDK) |
Cryptographic Security:AES-128/256 encryption, GCM/CTR modes X.509 RSA and ECC certificates Quantum resistant hybrid encryption using latest ML-KEM, ML-DSA standards. Automatic key management Custom Ciphers with Cryptographic SDK (CSDK) |
Cryptographic Security:AES-128/256 encryption, GCM/CTR modes X.509 RSA and ECC certificates Quantum resistant hybrid encryption using latest ML-KEM, ML-DSA standards. Automatic key management Custom Ciphers with Cryptographic SDK (CSDK) |
| Ethernet | Ethernet:4 Gigabit Ethernet ports via M12x-coded connectors Local (red), Network (black), Management (LAN), Management (Auxiliary Management) |
Ethernet:4 Gigabit Ethernet ports via M12x-coded connectors In compliance with IEEE 802.3at PoE + PSE, maximum 25.5W output on single PoE+ port. Total PoE+ power budget: 100W. Local (red), Network (black), Management (LAN), Management (Auxiliary Management) |
Ethernet:2 x Gigabit Ethernet traffic ports (Local/Network) 2 x Gigabit management ports (LAN/AUX) CPU: Quad-core Intel Processor |
| Management | Management:Central configuration and management with Senetas CM7 Network Manager (CM7). Supports Syslog, NTP, SNMPv1 read only monitoring SNMPv3Q for quantum-safe management. Alarm, event and audit logs. USB port for firmware upgrade. Serial console port with SSH access. | Management:Central configuration and management with Senetas CM7 Network Manager (CM7). Supports Syslog, NTP, SNMPv1 read only monitoring SNMPv3Q for quantum-safe management. Alarm, event and audit logs. USB port for firmware upgrade. Serial console port with SSH access. | Management:Central configuration and management with Senetas CM7 Network Manager (CM7). Supports Syslog, NTP, SNMPv1 read only monitoring SNMPv3Q for quantum-safe management. Alarm, event and audit logs. USB port for firmware upgrade. Serial console port with SSH access. |
| Power | Power:Input Power: 160W, 20V/8A Optional: CN7000-PA-160-OW power supply -30°C to 70°C (-22°F to 158°F) DC Input: 8V to 48V DC input (M12 S-coded) |
Power:Input Power: 120W, 20V/6A. Optional CN7000-PA-120-OW power supply or for in-vehicle applications, directly from the host environment. Connector: 5.5mm power jack w/locking. Damping bracket. Wall mount (optional). |
Power:Input Power: 9V – 42V, up to 3.33A DC input. Connector: 5.5mm power jack w/locking. Power supply unit including universal AC wall mount. |
| Environmental | Environmental:Operating: -40°C to 70°C (40°F to 158°F) Humidity: 10% – 90% non-condensing Shock and Vibration: Complies to MIL-STD-810G |
Environmental:Operating: -40°C to 70°C (40°F to 158°F) Humidity: 10% – 90% non-condensing Shock and Vibration: Complies to MIL-STD-810G |
Environmental:Operating: -40°C to 85°C (40°F to 185°F) Humidity: 5% – 95% non-condensing Shock and Vibration: Complies to MIL-STD-810G |
| Physical | Physical:Fanless, passive cooling Weight: 5.8kg (12.78lb) Dimensions: 220mm (W) x 310mm (D) x 90.5mm (H) [8.66” (W) x 12.20” (D) x 3.56” (H)] This unit is tamper-evident |
Physical:Fanless, passive cooling Weight: 1.9kg (4.18lb) Dimensions: 205mm (W) x 155mm (D) x 58mm (H) [8.07” (W) x 6.10” (D) x 2.28” (H)] This unit is tamper-evident |
Physical:Fanless, passive cooling Weight: 420g (14.81oz) Dimensions: 132.8mm (W) x 100mm (D) x 34.8mm (H) [5.23” (W) x 3.94” (D) x 1.37” (H)] This unit is tamper-evident |

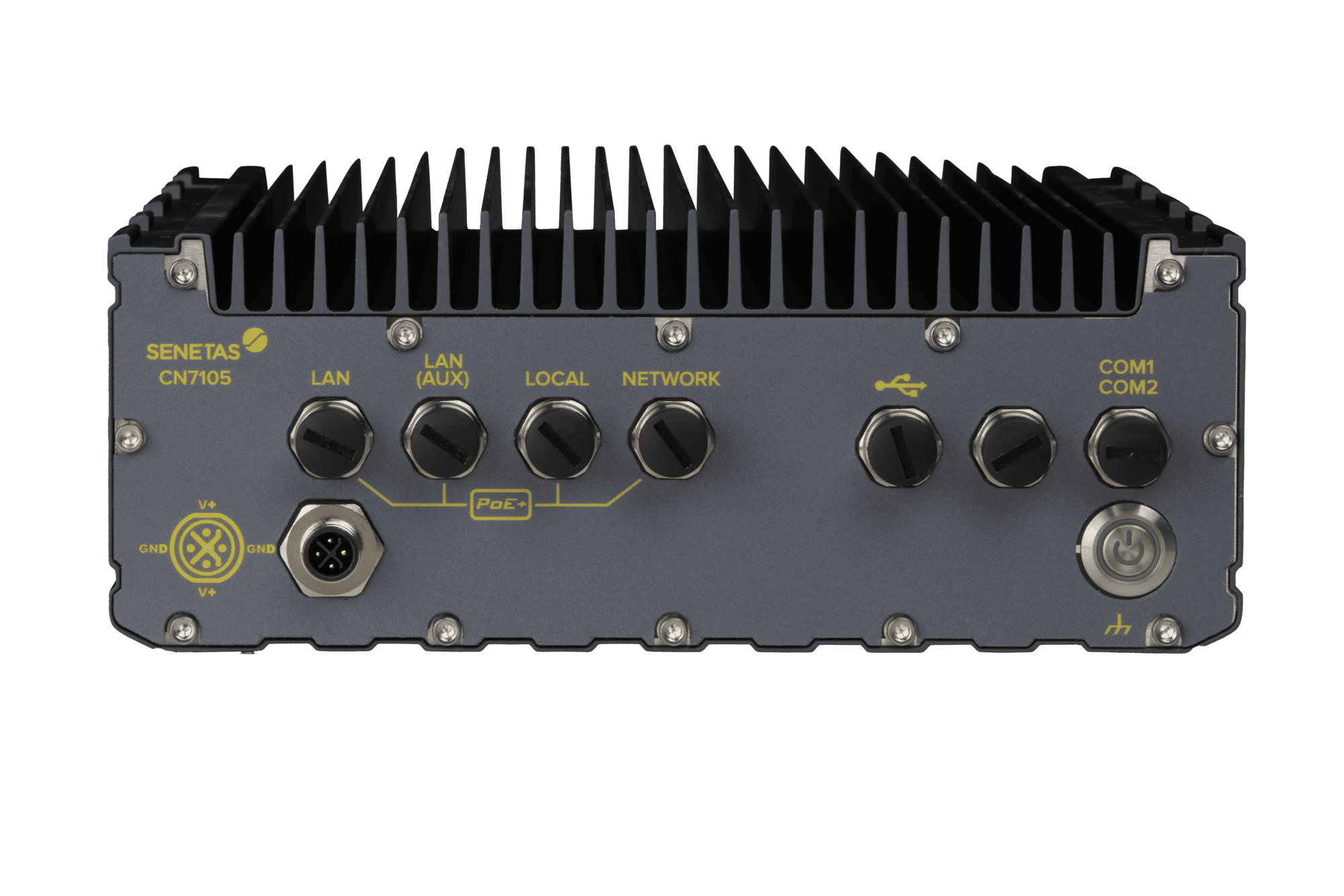

| Panels | Panels:Front: 2 x M12 X-coded Ports Local (protected-side) & Network (unprotected-side), 2 x M12 X-coded (Device management), 2 x USB 2.0 (A-coded), 2 x COM (A-coded), 8 to 48V DC IN (S-coded), Power button Rear: No connectors |
Panels:Front: 2 x M12 X-coded Ports Local (protected-side) & Network (unprotected-side), 2 x M12 X-coded (Device management), Power Supply Rear: 3 x USB Ports, 2 x Serial Port, LED Indicators |
Panels:Front: 2 x USB Type-A, 1.55mm Power jack. 2 x RJ45 (Device Management) Side: 2 x RJ45 Ports Local (protected-side) & Network (unprotected-side) Rear: Power button, 2 x USB Type-A LED |
| SWAP | SWAP:Optimized for Size, Weight and Power in-vehicle and mobile deployments | SWAP:Optimized for Size, Weight and Power in-vehicle and mobile deployments | SWAP:Optimized for Size, Weight and Power in-vehicle and mobile deployments |
| Certification | Certification:FIPS 140-3 Level 1 (CE Crypto Module) | Certification:FIPS 140-3 Level 1 (CE Crypto Module) | Certification:FIPS 140-3 Level 1 (CE Crypto Module) |
| Use case | Use case:In-vehicle, field deployments | Use case:Industrial, OT networks | Use case:Smallest footprint edge sites |
Ready to Secure Your Network’s Edge?
Contact us today to arrange a demo of the CN7000 Series and learn how Senetas can protect your mission-critical data.
